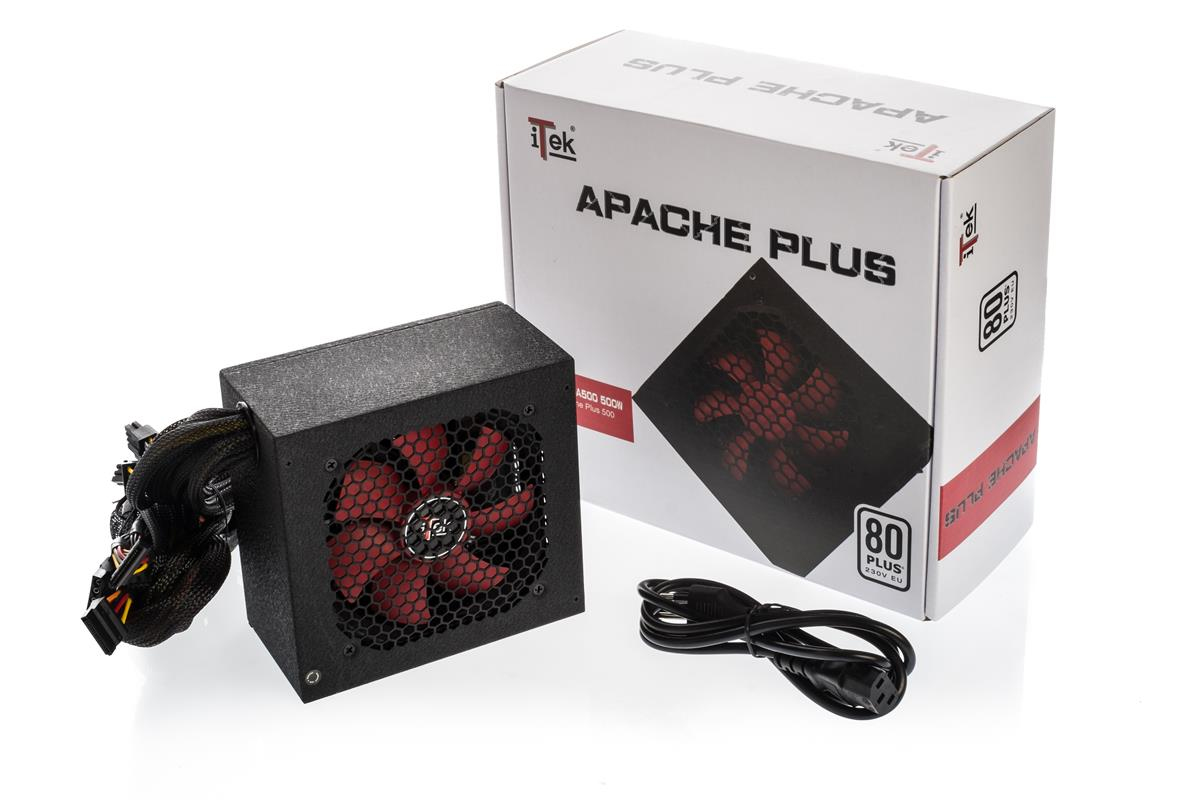

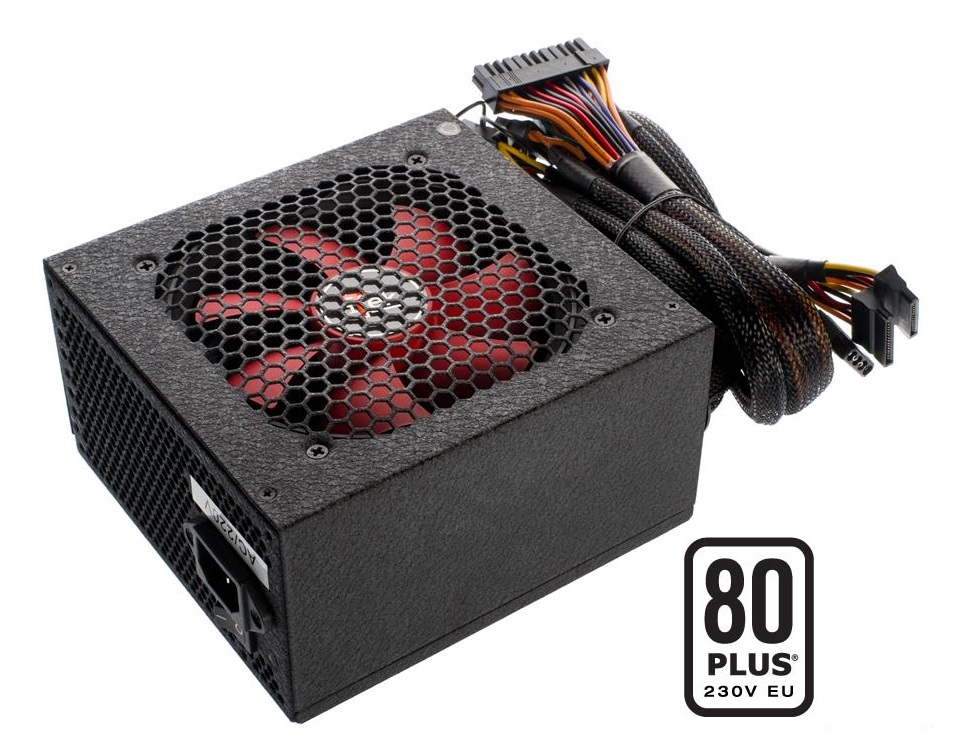

iTek APACHE PLUS 500 power supply unit 500 W ATX Black,Red

iTek APACHE PLUS 500. Total power: 500 W, AC input voltage: 200 240 V, AC input frequency: 50 Hz. Fan diameter: 12 cm, Number of fans: 1 fan(s), Cooling type: Active. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, Mean time between failures (MTBF): 100000 h. Product colour: Black,Red

COD: ITPSA500 Categoria: Tag:


Technical Detail

Ports & interfaces
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
2
Number of SATA power connectors
4
EPS power connector (8-pin)
Y
PCI Express power connectors (6+2 pin)
1
Floppy disk drive connector
Y
Weight & dimensions
Weight
2.2 kg

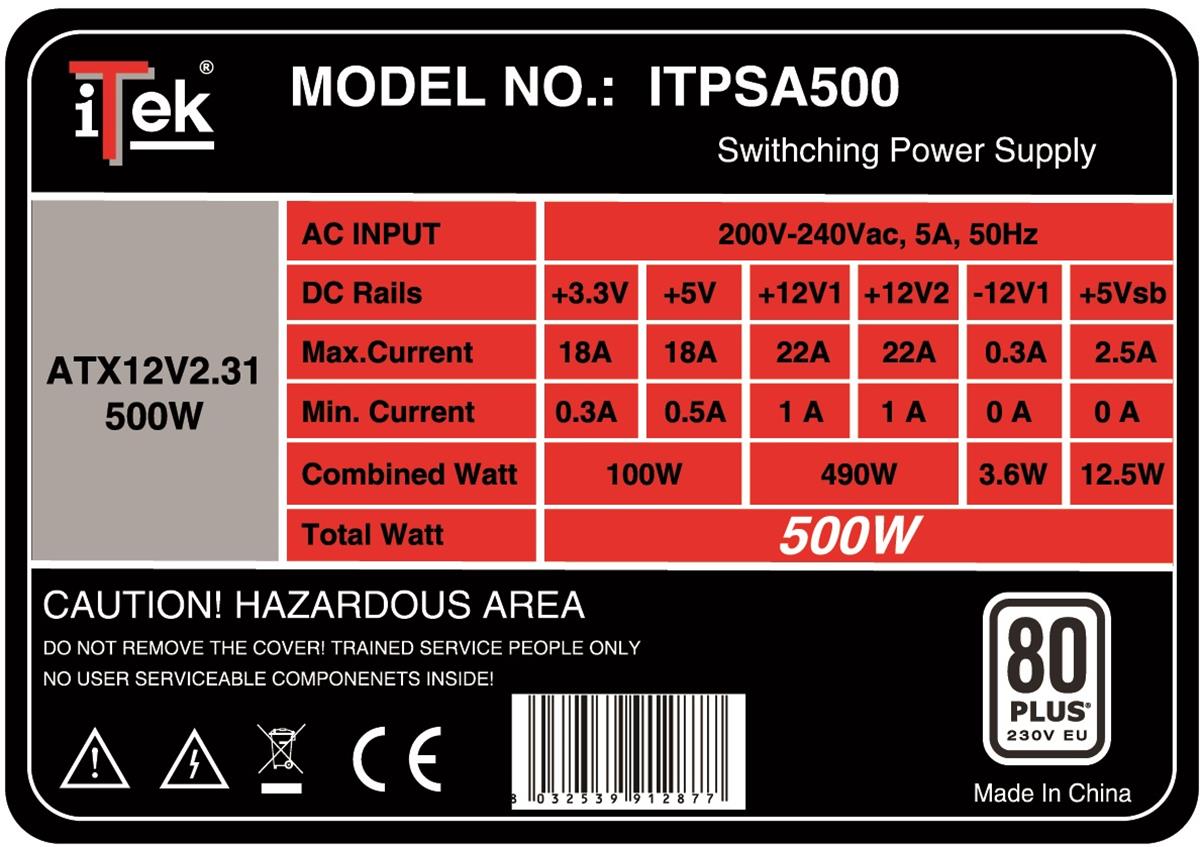

Power
Total power
500 W
AC input voltage
200 - 240 V
AC input frequency
50 Hz
Input current
5 A
Maximum input current (@110V)
+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V

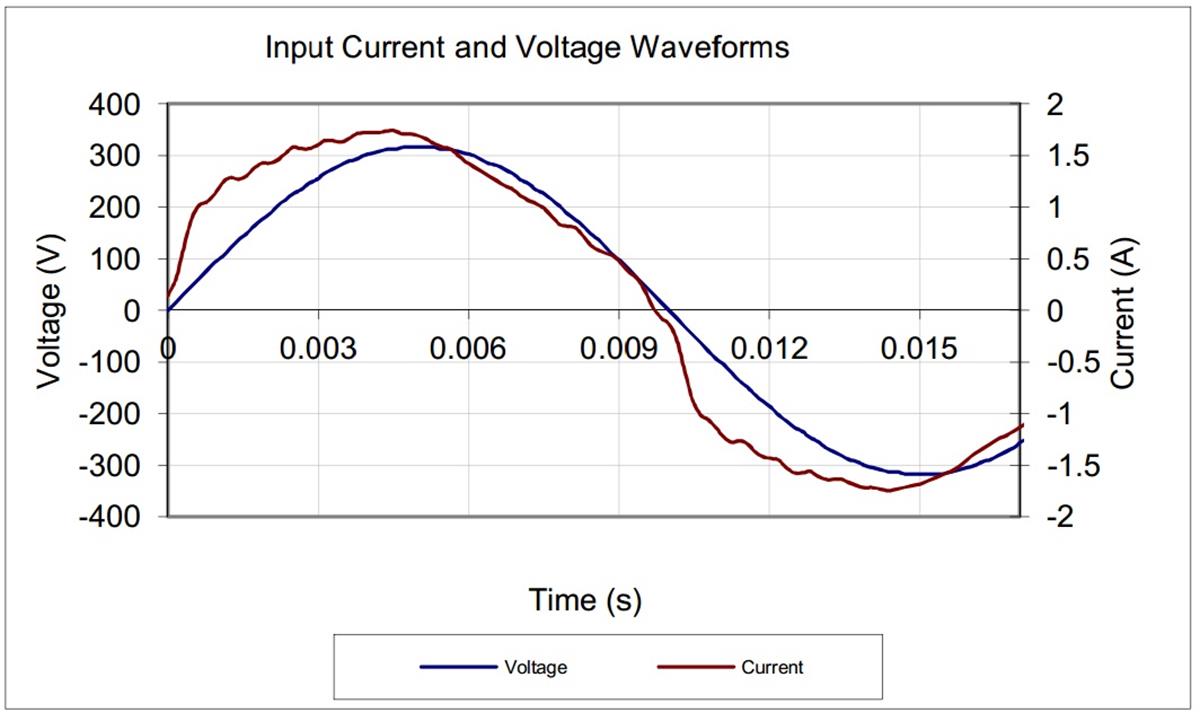

Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
100 W
Combined power (+12V)
490 W
Combined power (+5V)
100 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
18 A
Max output current (+12V1)
22 A
Max output current (+12V2)
22 A
Max output current (+5V)
18 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A

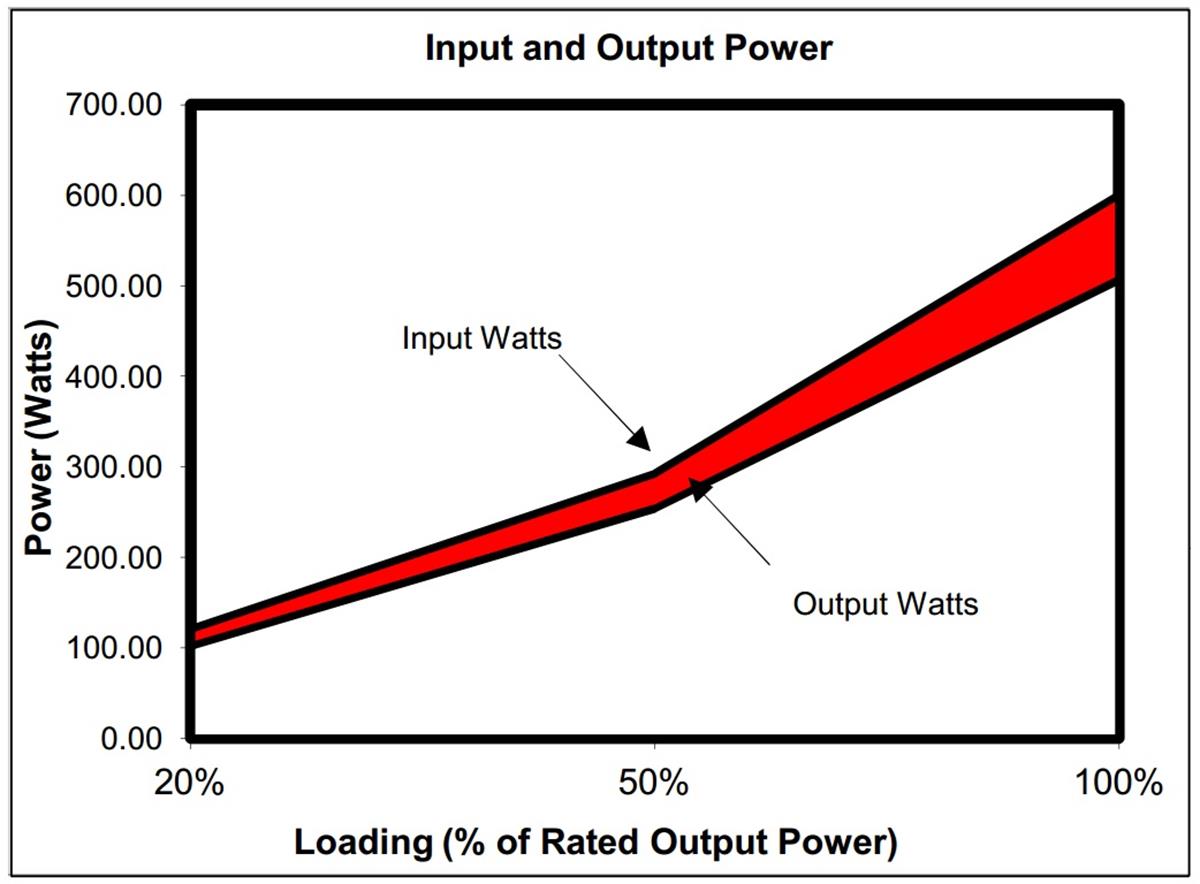

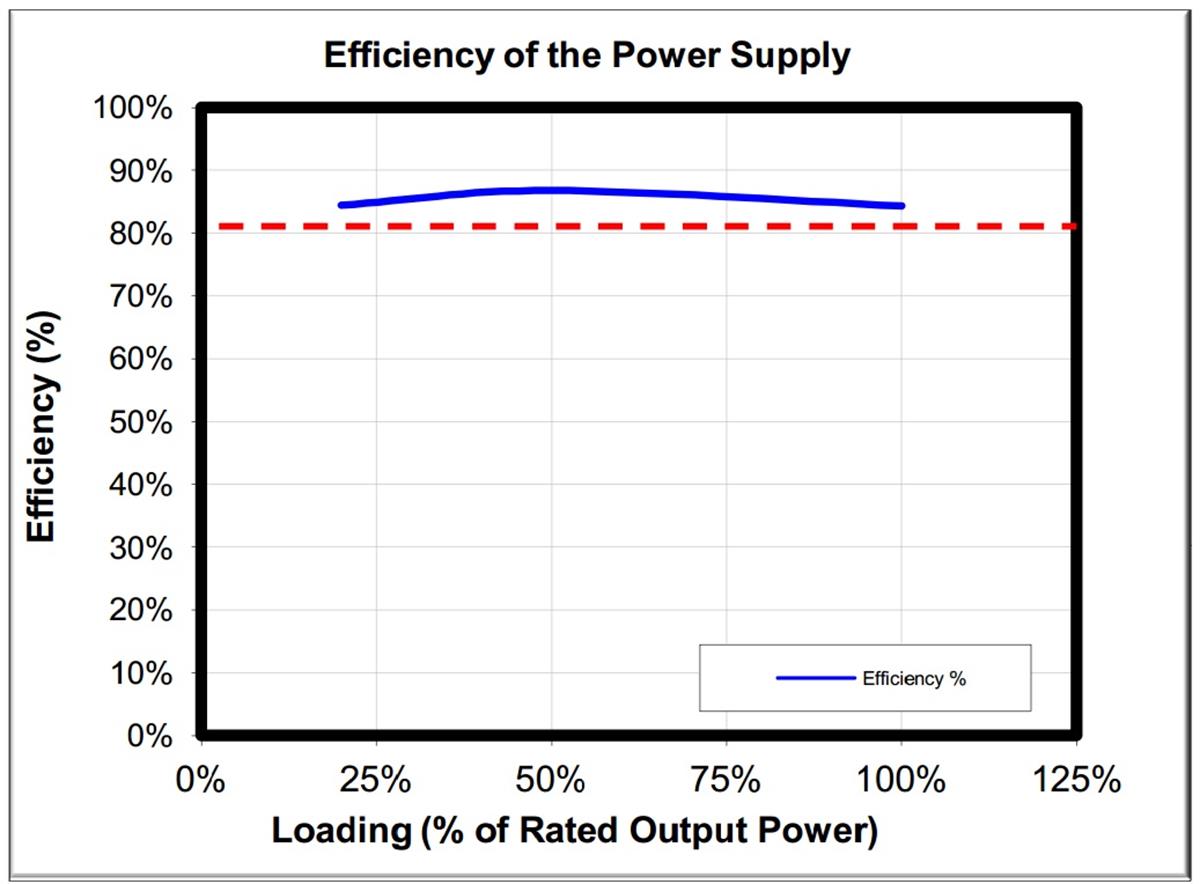

Efficiency
85%
Power protection features
Over current,Over power,Over voltage,Short circuit,Under voltage
Packaging data

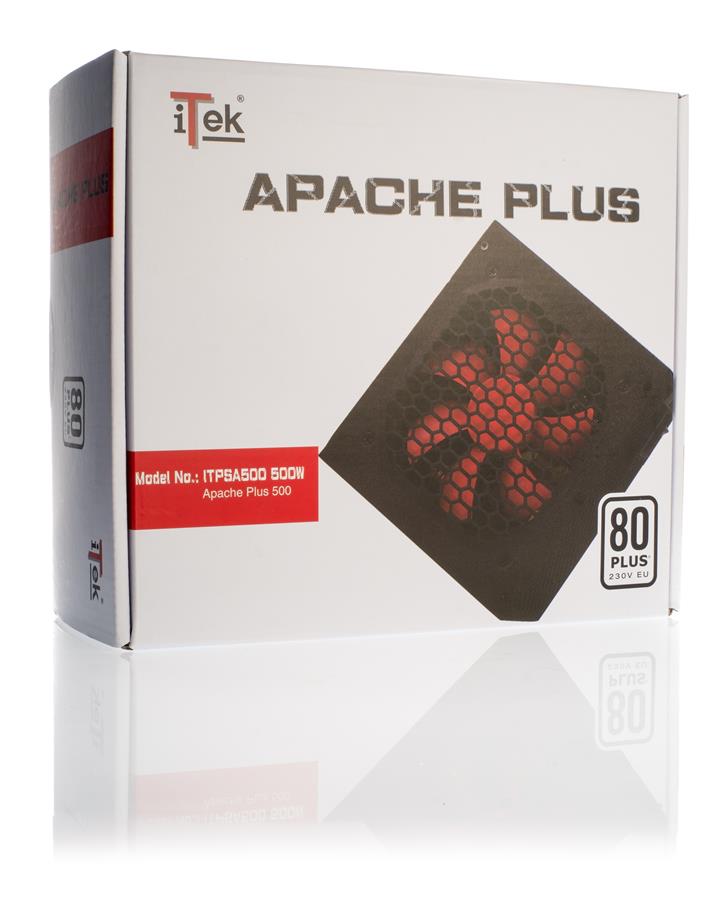

Package type
Box
Certificates
80 PLUS certification
80 PLUS
Certification
CE EMI
Packaging content
Manual
Y
Warranty card
Y
Cooling

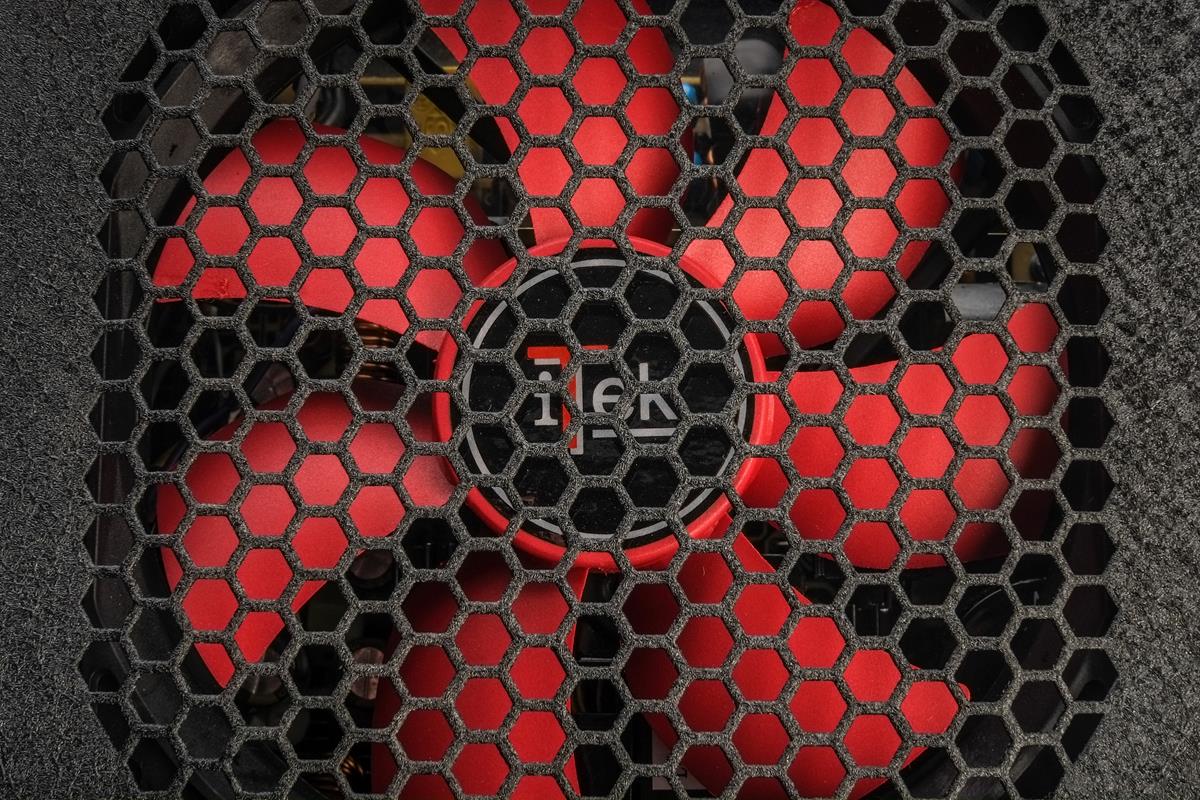

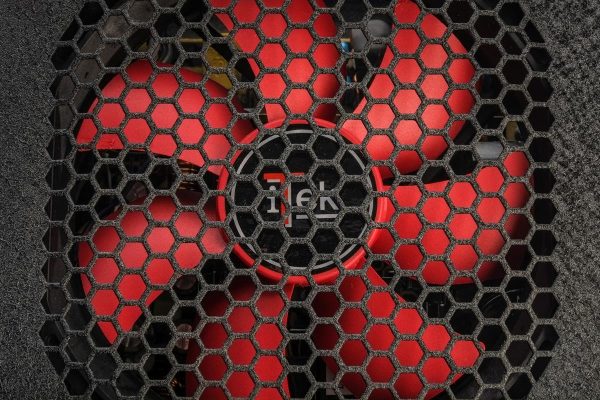

Fan diameter
12 cm
Number of fans
1 fan(s)
Cooling type
Active
Design
Product colour
Black,Red
Performance
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
2.31
On/off switch
Y
Mean time between failures (MTBF)
100000 h
Warranty
Warranty
24 month
